PyBreeze: The Automation-First IDE

Python 3.10–3.14 License: MIT PySide6 Documentation

繁體中文 简体中文

PyBreeze is a Python IDE purpose-built for automation engineers. Web, API, GUI and load testing live in one window, alongside the everyday HTTP tooling that automation work actually needs — no plugin hunting, no environment archaeology.

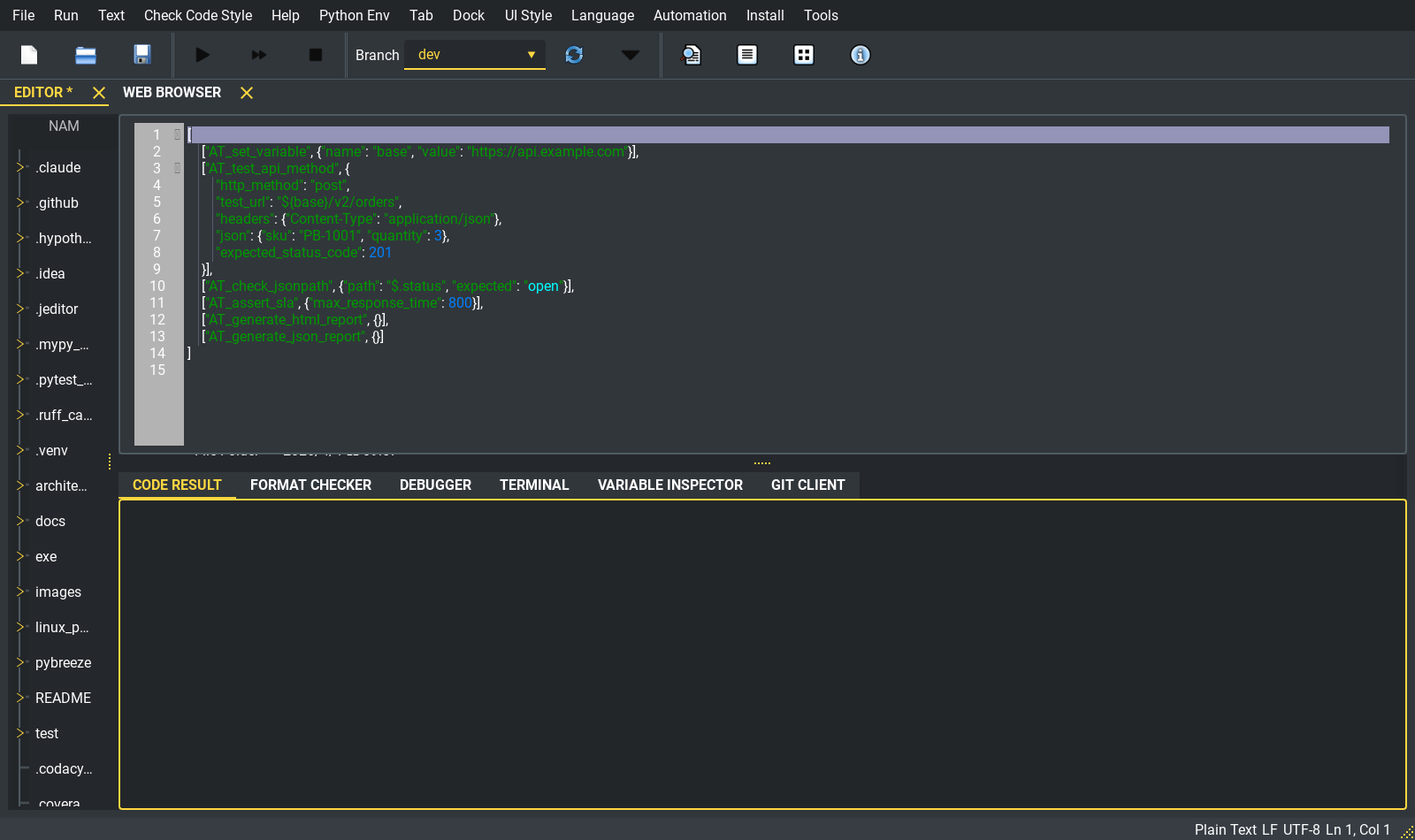

PyBreeze main window

The main window: an APITestka action file open in the editor, project tree on the left, run/format/debug/terminal panes below.

Table of Contents

A Tour in Screenshots

Three menus carry most of the IDE. Automation runs your scripts, Tools opens the utility tabs, Install fetches the modules.

Automation Tools Install

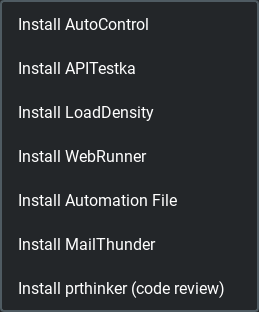

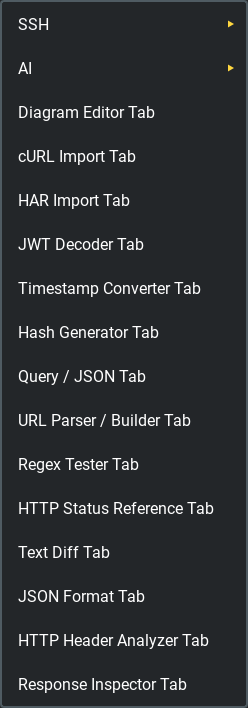

Automation menu Tools menu Install menu

Every automation run happens in its own subprocess. Output streams back into a run window while the editor stays responsive — stdout in the normal colour, stderr in red, and the process exit code at the end:

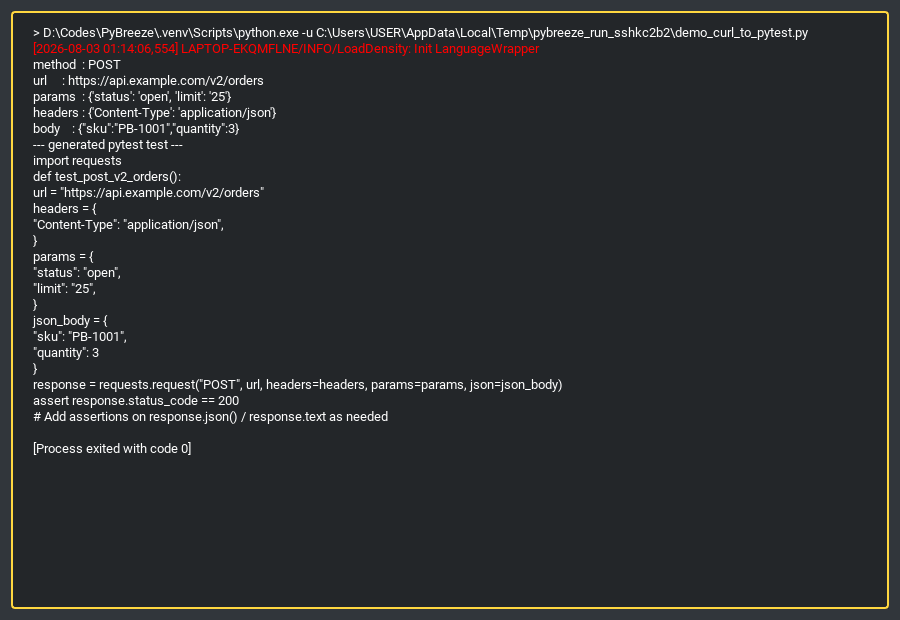

Run output window

A real run: PyBreeze’s own curl parser invoked through the IDE’s file runner, generating a pytest test.

Four-Dimensional Automation

PyBreeze covers the full spectrum of automation testing out of the box:

Dimension Module What it does
API APITestka RESTful testing with request builders, response analyzers, mock servers and assertions
Web WebRunner Browser-driven interaction and testing with driver and locator integration
GUI AutoControl Desktop automation via image recognition, coordinates, keyboard/mouse control and recording
Load LoadDensity High-concurrency performance testing for stability under pressure

Plus:

Each module gets the same menu shape: Run (single script, batch directory, with or without an emailed report), Help (docs and GitHub open as in-IDE browser tabs), Project (scaffold a template directory), and where available a native GUI tab.

IDE core

Built-in Tools

In a tool with one main button, Ctrl+Enter anywhere in it presses that button: its text boxes take Enter as a new line. In Query ↔ JSON and the URL parser/builder, which convert both ways, it goes the way the input reads: from JSON when the input is a JSON object.

cURL Import — a copied request becomes a runnable script

Paste a curl command from your browser’s dev tools and pick a target. The parser handles method, URL, headers, bodies, basic auth, -G query parameters, -F multipart fields (uploads become files=open(...)), the --json shortcut, -d @file bodies and multi-line continuations. Repeated -H values are combined the way HTTP combines them (; for cookies, , otherwise) instead of the last one silently winning. Nothing is ever executed — it is pure parsing.

Target: pytest Target: APITestka JSON action

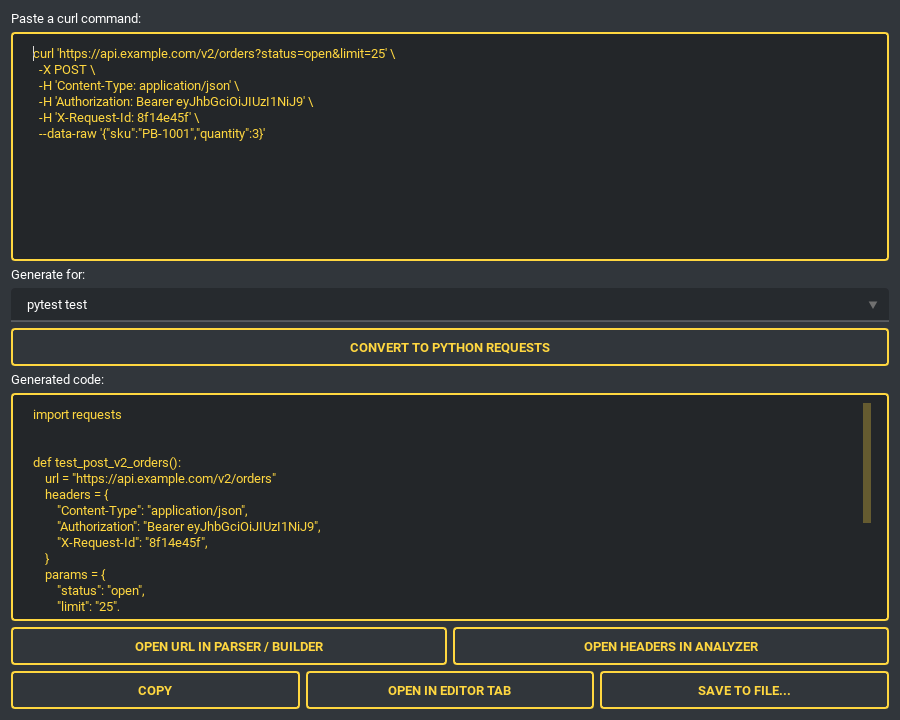

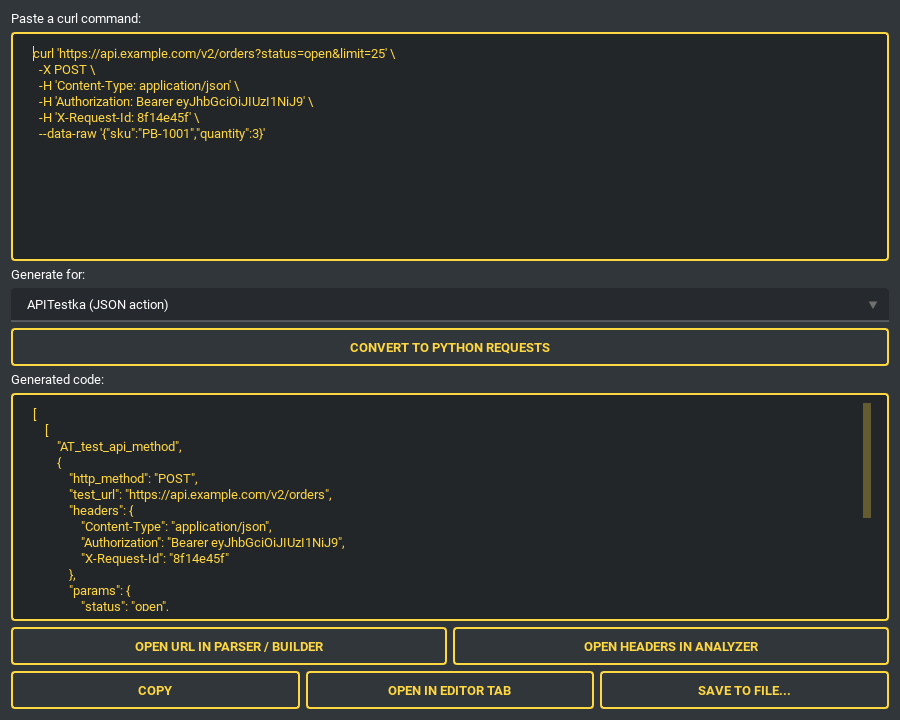

cURL import to pytest cURL import to APITestka action

Targets: Python requests, a ready-to-run pytest test, APITestka (Python or a [["AT_test_api_method", {...}]] action list that execute_files runs directly), and a LoadDensity Locust load test. Copy the output, open it straight into an editor tab, or save it with the right extension. One click also hands the parsed URL to the URL parser/builder or the headers to the header analyzer.

HAR Import — a whole session becomes a test suite

“Copy as cURL” captures one request; Save all as HAR captures the session. Open the export and every recorded call is listed with method, path, status and media type, with page furniture (CSS, images, fonts) filtered out by default.

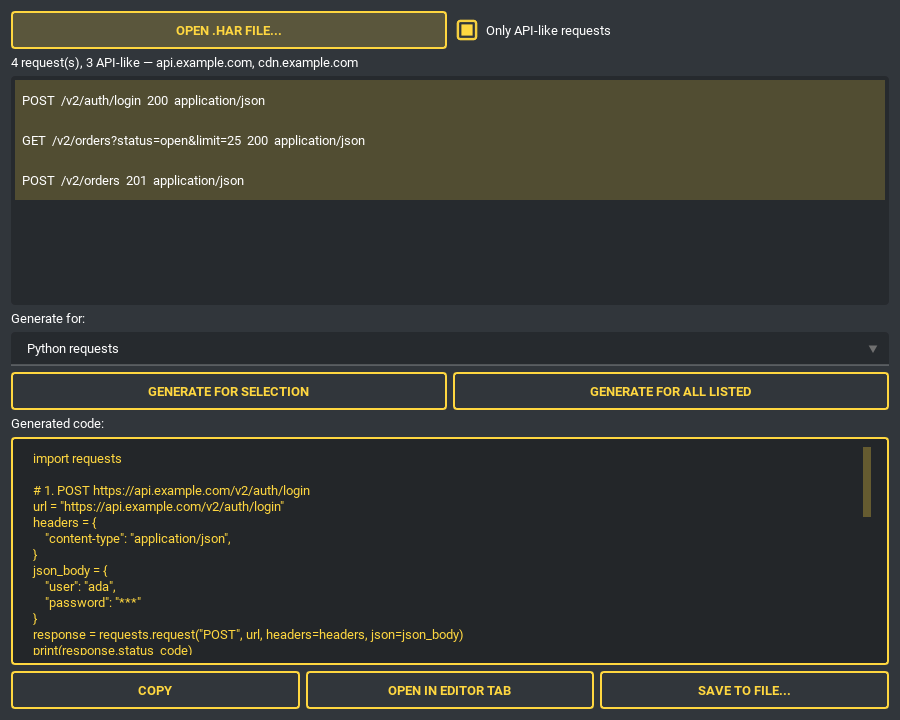

HAR import

Select what you want — or take everything listed — and generate one script using the same targets as the cURL importer. Repeated endpoints get numbered test names so no test silently replaces another; HTTP/2 pseudo-headers are dropped, and a Cookie header duplicating the recorded cookie list is removed so each value is sent once (cookies sharing a name, which a dictionary cannot hold, go as the header instead). An entry that cannot become a request, such as one with a malformed URL or method, is skipped and the rest load. A single selected request produces exactly what the cURL importer would. HAR is JSON, so this needs nothing beyond the standard library, and nothing is ever replayed for you.

Response Inspector — paste a response, read everything in it

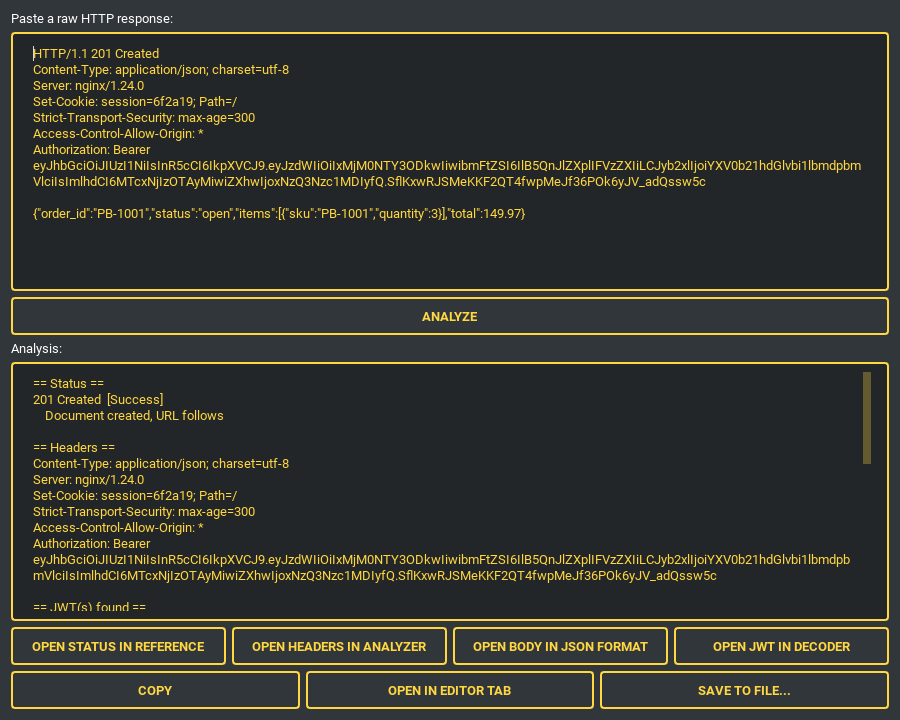

Response Inspector

The status code is looked up in the HTTP reference, headers are parsed, a JSON body is pretty-printed, and any JWT anywhere in the text (an Authorization: Bearer header, for instance) is decoded with its timestamp claims rendered in UTC. Each finding opens in its dedicated tool tab, pre-filled.

HTTP Header Analyzer — what a header block is actually saying

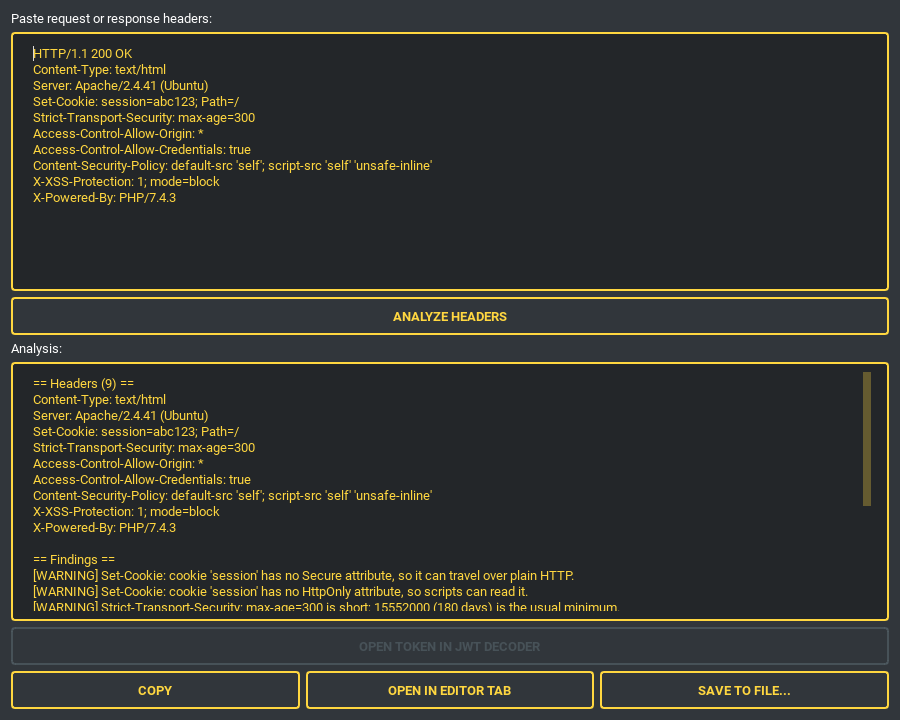

Header Analyzer

Reports names sent more than once, Set-Cookie entries missing Secure / HttpOnly / SameSite, wildcard CORS (and the wildcard-plus-credentials combination browsers reject outright), an HSTS max-age too short to survive a restart, CSP unsafe-inline / unsafe-eval, product banners, deprecated headers, and — for responses — the security headers that are absent. Headers carrying credentials are reported by name only; their values never enter the report.

Text Diff

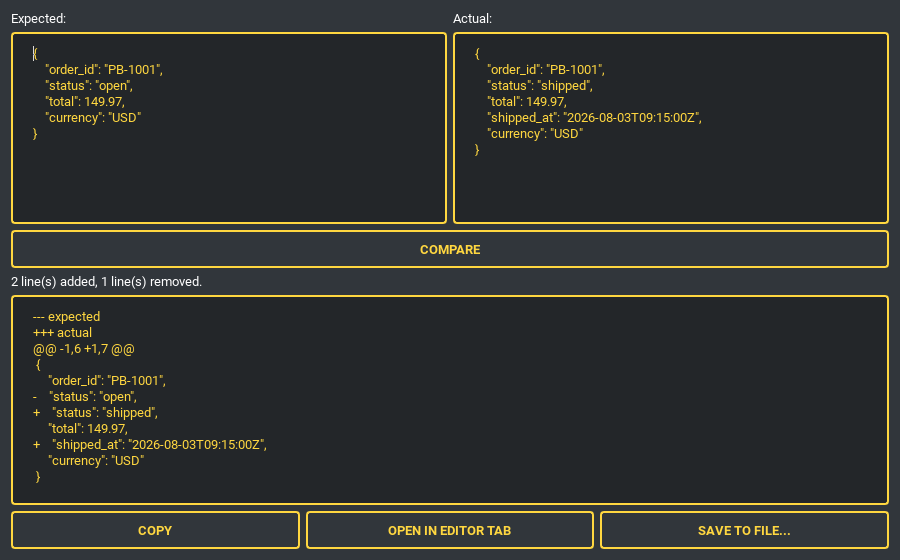

Text Diff

Compare two payloads — an expected vs. actual API response, say — and get a unified diff, its added and removed lines in the theme’s colours, plus a one-line added/removed summary.

The everyday utilities

Each is a tab or a dock, each has the same copy / open-in-editor / save-to-file row along the bottom.

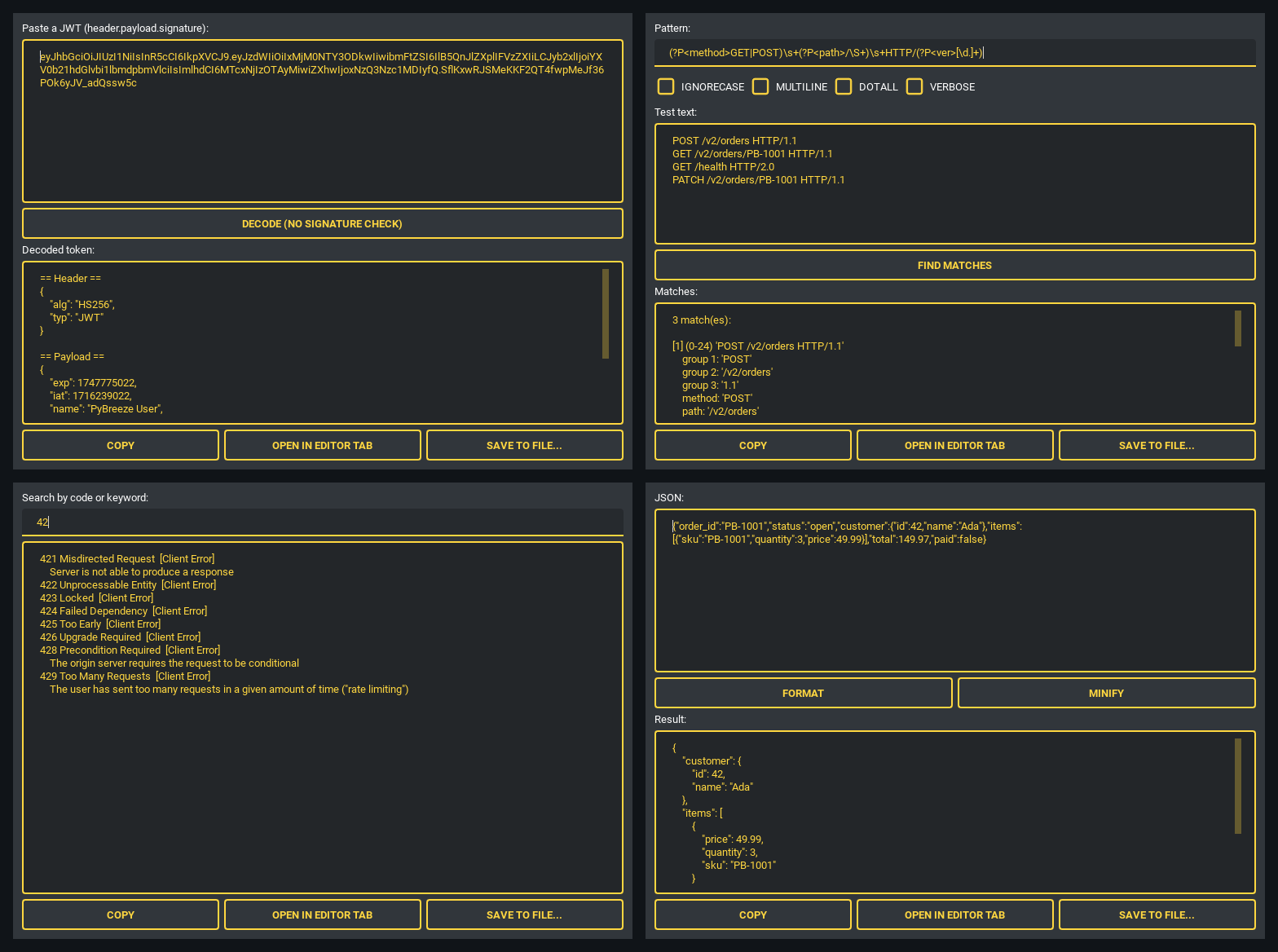

JWT decoder, regex tester, HTTP status reference, JSON format

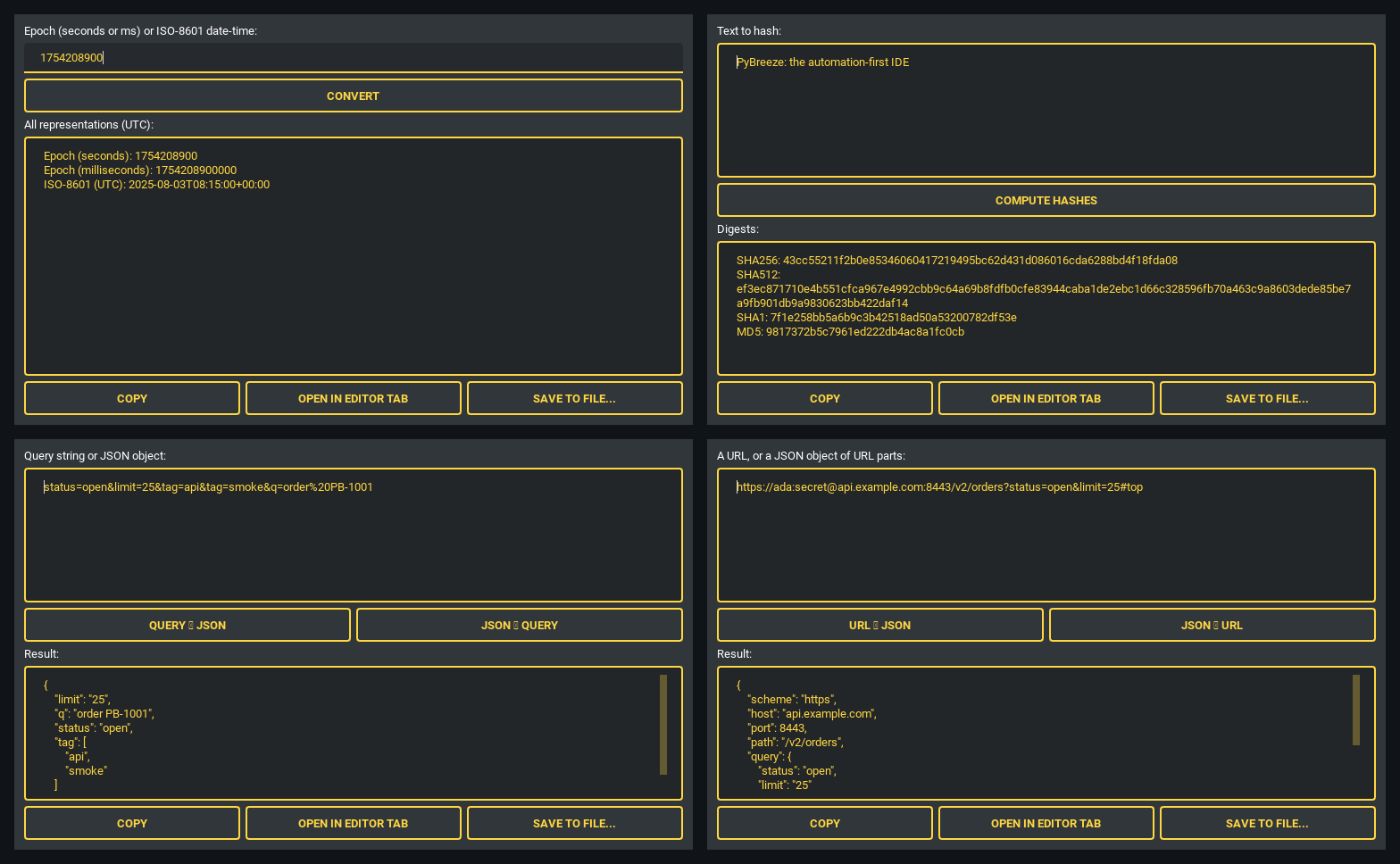

Timestamp converter, hash generator, query/JSON, URL builder

Diagram Editor — architecture diagrams without leaving the IDE

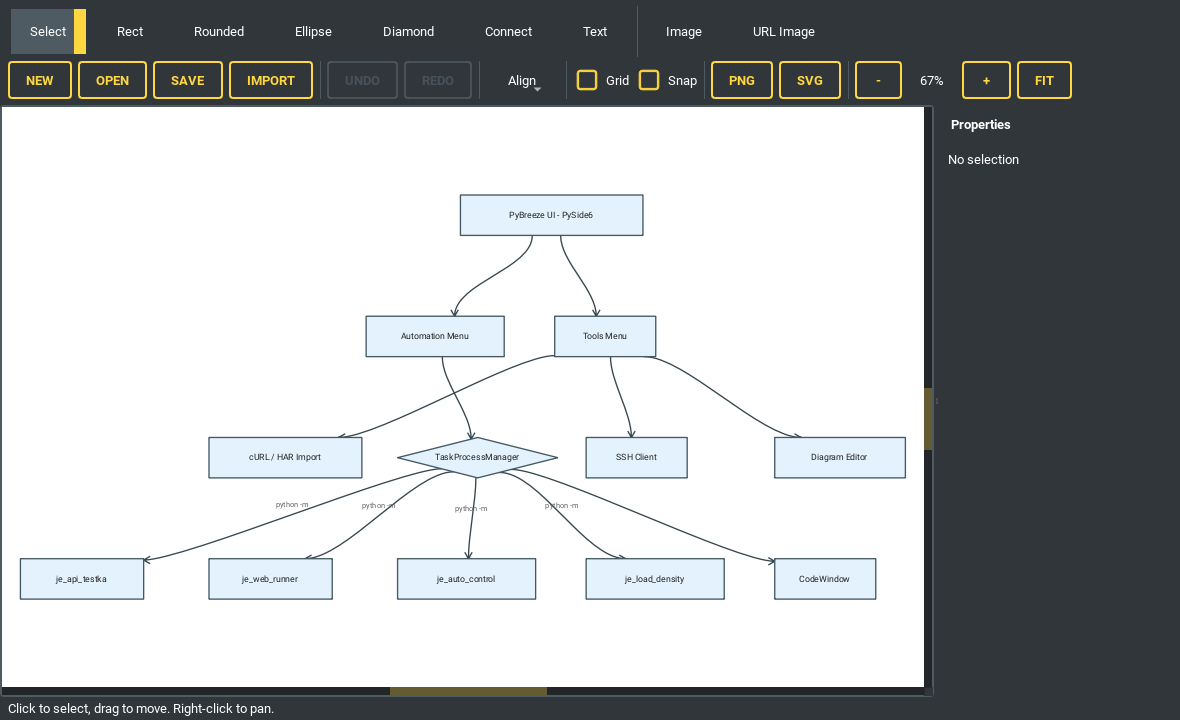

Diagram editor with an imported Mermaid flowchart

A Mermaid flowchart pasted into the importer and laid out automatically.

A WYSIWYG QGraphicsScene editor: rectangle, rounded, ellipse and diamond nodes, bezier connections with edge labels, free text and images. Mermaid flowchart / graph import runs a Sugiyama-style layout (layering, crossing reduction, cross-axis alignment). Save and open as .diagram.json, export to PNG or SVG, with undo/redo, align, distribute, grid, snap and zoom. Images fetched from a URL are SSRF-validated and size-capped.

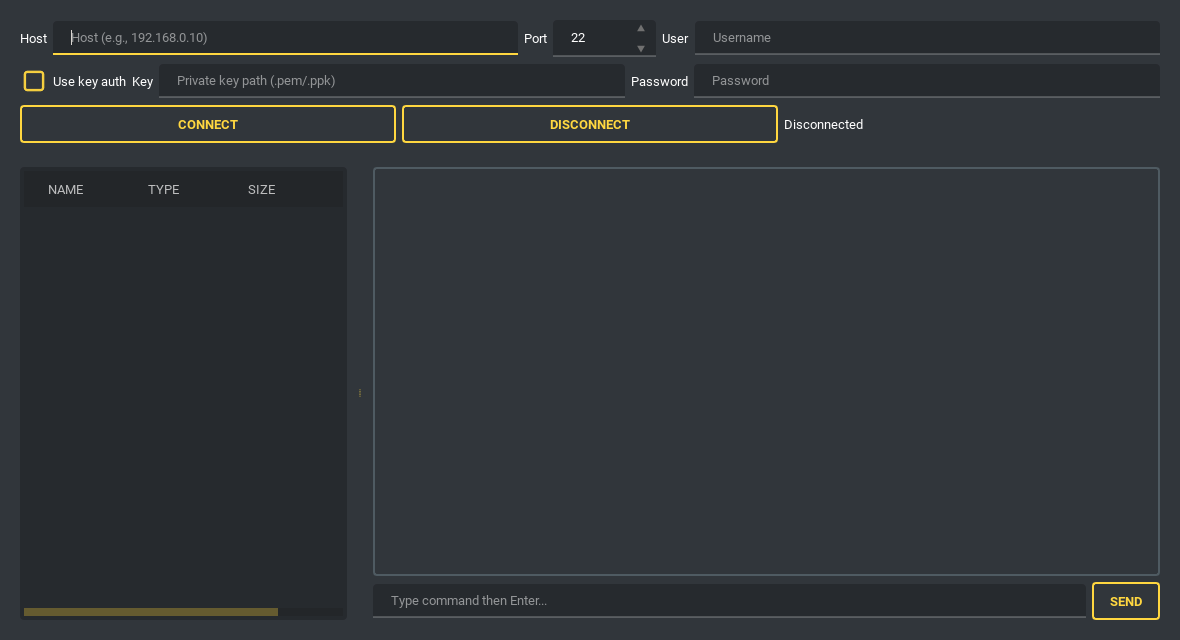

SSH Client — terminal and remote file tree side by side

SSH client

Password or private-key authentication (the key file picked with Browse, starting in ~/.ssh: an RSA, Ed25519 or ECDSA key in OpenSSH or PEM format, PKCS#8 included; a PuTTY .ppk key is exported from PuTTYgen as an OpenSSH key first, as the error message says; with key authentication the password field reads Passphrase and takes the key’s passphrase), an interactive shell with keepalive that shows ANSI colours, in a fixed-pitch font, whose width and height the shell is told as the view is resized (Up and Down bring back earlier commands, Enter on an empty line reaches the shell, clear and reset wipe the view, and Interrupt, or Ctrl+C in the command line with nothing selected, stops what runs in it; the view shows output line by line, so programs that draw on the whole screen by moving the cursor, such as vim or htop, come out garbled), and a lazy-loading SFTP tree with create-folder / rename / delete / upload / download (F2 renames and Delete deletes the entry in focus, as in the project tree). Every SFTP request runs in the background, so a stalled link never freezes the IDE. An upload asks before it replaces a file on the server, and a transfer can be cancelled from the tree’s menu. Both directions write to a temporary file first, so a dropped link leaves the old copy whole. Unknown host keys are not auto-accepted: the SHA256 fingerprint is shown for confirmation on first connection (trust on first use) and persisted to ~/.pybreeze/ssh_known_hosts.

And also

AI-Assisted Development

As in the tools, Ctrl+Enter in AI Code Review, CoT Code Review or Skill Send presses its send button.

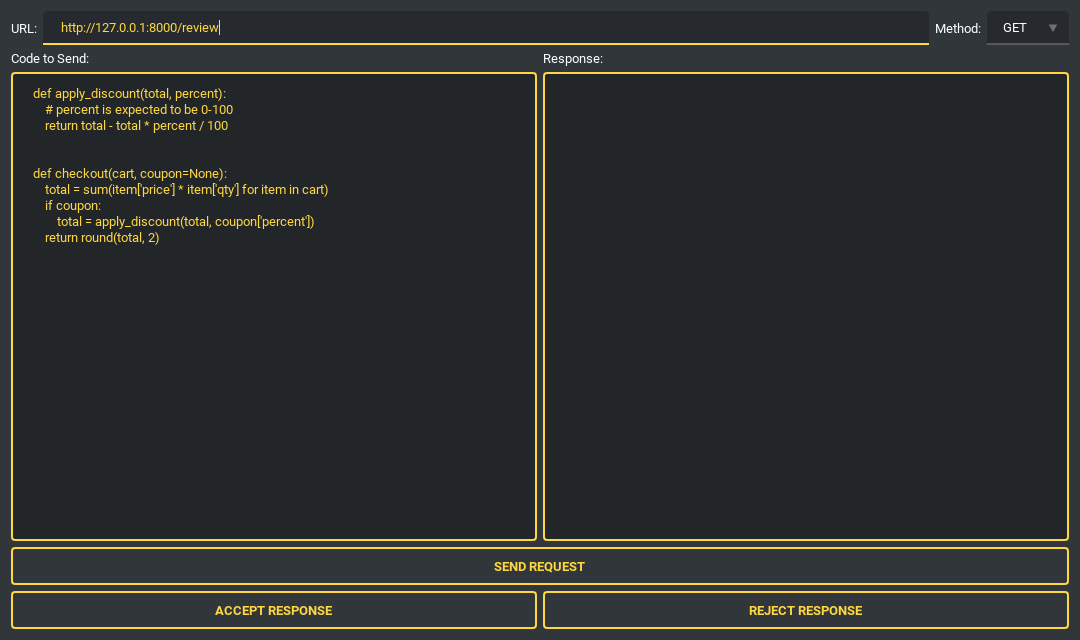

AI Code Review

AI code review client

Shown in the pre-send state. Send a selection to an LLM endpoint (as the form field code in the body of a POST, the default, or a PUT; GET and DELETE send the URL alone), then accept or reject the suggestion — the tally is kept in ~/.pybreeze/response_stats.txt. The URL is SSRF-validated, the connection goes only to the address that was checked, redirects are not followed, and the response body is size-capped before it reaches the panel. An endpoint on this machine or on a private network, such as a local model server, is therefore refused; CoT Code Review and Skill Send check their endpoint URL the same way.

Chain-of-Thought Code Review (prthinker)

Run the prthinker pipeline over the file being edited or over a Pull Request, with output streaming into a run window.

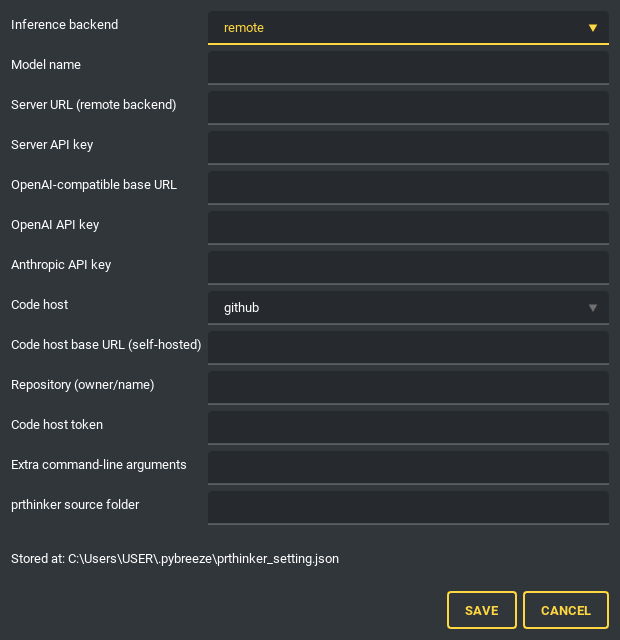

prthinker settings

One settings form holds the inference backend (remote, local, OpenAI-compatible, Anthropic, Gemini, Cohere, Mistral, claude-cli, codex-cli), the code host (GitHub / GitLab / Gitea) and the repository. Keys and tokens are handed to the review as environment variables, never on a command line where a process list would show them — and they are masked in logs. The model name goes to whichever backend is chosen. Rule retrieval (RAG) is off unless set to remote, which asks the prthinker server’s /rag: prthinker’s local rule index ships with its repository, not with the package installed from it. The review runs with the interpreter chosen in Python Env, so PyBreeze itself can stay on an older Python than the 3.12 prthinker needs.

CoT Prompt Editor

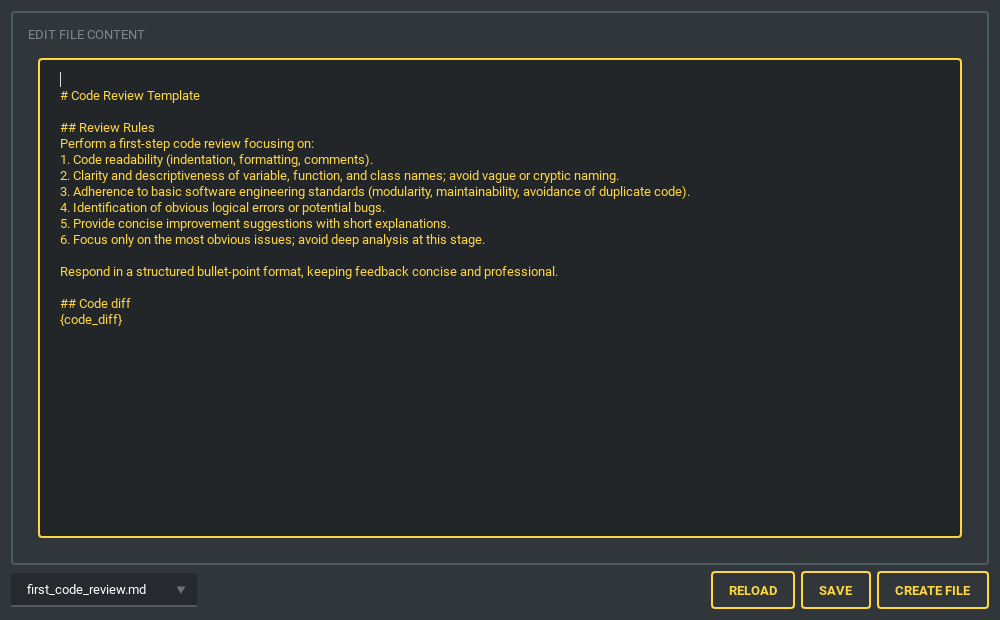

CoT prompt editor

Create and manage the multi-step review chain: first summary → first code review → a judge of that review → linter → code smell detector → step-by-step analysis → total summary → a judge of the summary. Each step quotes the answers it needs from the steps before it. Files are watched, so an external edit shows up immediately.

Run the chain from Tools → AI → CoT Code Review (a tab, or a dock from the Dock menu): paste the code, give the endpoint URL, and each step’s answer appears in the selector as it arrives. Each step is a POST of the JSON {"prompt": "..."}, and the response body, as text, is that step’s answer.

Skill Prompt Editor & Skill Send

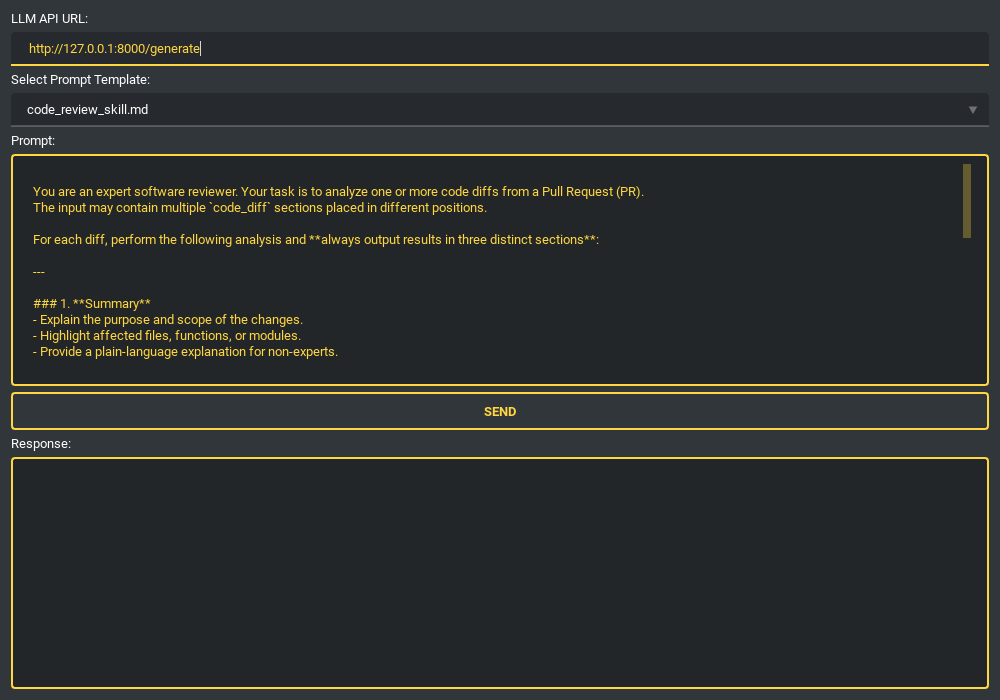

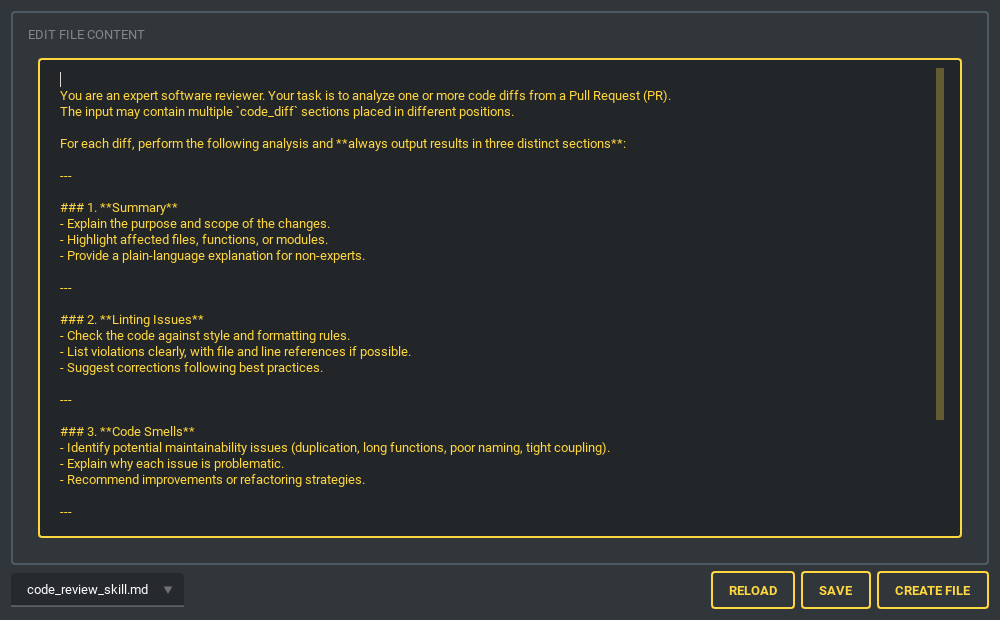

Skill prompt editor Skill send
Skill prompt editor Skill send

Define reusable skill prompts (code explanation, code review), then pick one, edit it if needed, and send it to an LLM endpoint from a dedicated tab or dock: a POST of the JSON {"code": "..."} holding the prompt, whose response body is shown as it is. Both shown in the pre-send state — no endpoint was contacted for these screenshots.

Plugin System

PyBreeze inherits JEditor’s plugin architecture, auto-discovered from a jeditor_plugins/ directory in the working directory. A plugin can register:

Loaded plugins appear under their own Plugins menu with an About entry and one run action, labelled with the suffixes it runs. PLUGIN_GUIDE.md covers what PyBreeze adds and links JEditor’s guide, which has the full API and worked examples (C, C++, Go, Java, Rust, and a French translation).

Multi-Language UI

Menus, dialogs, the reasons a tool refuses its input and the run window’s own notices ([Error] …, [Run] …) all follow the chosen language. Both dictionaries carry the same 760 keys, and a test enforces that parity so a new string can never land in one language only. The Language menu also lists JEditor’s Japanese and Simplified Chinese: picked, JEditor’s own menus change and PyBreeze’s strings stay in English. Further languages can be added via translation plugins.

Architecture

flowchart TB
    UI["PyBreeze UI · PySide6"]

    subgraph Editor["JEditor (Base Editor)"]
        direction LR
        E1["Code Editor + Tabs"]
        E2["File Tree"]
        E3["Syntax Highlighting"]
        E4["Plugin System"]
    end

    subgraph Automation["Automation Menu"]
        direction LR
        A1["APITestka"]
        A2["AutoControl"]
        A3["WebRunner"]
        A4["LoadDensity"]
        A5["FileAutomation"]
        A6["MailThunder"]
        A7["TestPioneer"]
    end

    subgraph Executors["Subprocess Executors · TaskProcessManager"]
        direction LR
        X1["je_api_testka"]
        X2["je_auto_control"]
        X3["je_web_runner"]
        X4["je_load_density"]
        X5["automation-file"]
        X6["je-mail-thunder"]
        X7["test_pioneer"]
    end

    subgraph Tools["Tools"]
        direction LR
        T1["SSH · paramiko"]
        T2["AI Code Review"]
        T3["Prompt Editors"]
        T4["Diagram Editor"]
        T5["HTTP Toolbelt"]
        T6["JupyterLab"]
    end

    subgraph Install["Install Menu"]
        direction LR
        I1["Module Installers"]
        I2["Build Tools"]
    end

    UI --> Editor
    UI --> Automation
    UI --> Tools
    UI --> Install

    A1 --> X1
    A2 --> X2
    A3 --> X3
    A4 --> X4
    A5 --> X5
    A6 --> X6
    A7 --> X7

The editor process never runs your script. Every automation module is launched as python -m <package> in the project’s interpreter with shell=False. Two daemon threads read stdout and stderr into thread-safe queues; a 100 ms QTimer drains them onto the UI thread in bounded batches. A crash, a hang or an infinite print loop in a script cannot take the IDE with it.

For a module-by-module walkthrough of the codebase, see architecture_explore.md.

Installation

From PyPI

pip install pybreeze

From source

git clone https://github.com/Integration-Automation/PyBreeze.git
cd PyBreeze
pip install -r requirements.txt

System requirements

Quick Start

python -m pybreeze                # command line
python exe/start_pybreeze.py      # from the exe directory

from pybreeze import start_editor

start_editor()                              # the theme picked from UI Style (dark_amber until one is)
start_editor(theme="dark_teal.xml")         # any qt_material theme; it becomes the picked one

Once launched:

  1. Write an automation script in the editor
  2. Run it from the Automation menu, picking the target module
  3. Watch the output stream into the run window
  4. Generate an HTML / JSON / XML report
  5. Send it by email through the MailThunder integration

Integrated Automation Modules

Module Capabilities
APITestka HTTP methods, async via httpx, Flask mock servers, HTML/JSON/XML reports, scheduler triggers, socket server, JSON-schema and JSONPath assertions, SLA checks, record-replay cassettes
AutoControl Mouse (click, drag, scroll, position), keyboard (type, hotkey, press/release), image recognition and locate-and-click, screenshots, record and playback, shell and process control
WebRunner Browser driver integration, element location and interaction, web test scripting, reports
LoadDensity Concurrent request simulation, performance metrics, stress scenario management, reports
MailThunder SMTP sending, HTML report delivery, attachments, environment-variable configuration
TestPioneer YAML test definitions, template generation, structured execution; Install ▸ Automation ▸ Install TestPioneer installs or upgrades it (0.1.34 and later read a YAML file as UTF-8 whatever the system locale)
File Automation Automated file and directory operations, batch processing
prthinker Chain-of-thought code review of a file or a Pull Request; settings in ~/.pybreeze/prthinker_setting.json; installed from its own source folder via Install ▸ Automation ▸ Install prthinker (needs Python 3.12+)

Project Structure

PyBreeze/
├── pybreeze/
│   ├── __init__.py                    # Public API (start_editor, plugin re-exports)
│   ├── __main__.py                    # Entry point (python -m pybreeze)
│   ├── extend/
│   │   ├── process_executor/          # Subprocess isolation layer
│   │   │   ├── python_task_process_manager.py   # TaskProcessManager (core)
│   │   │   ├── process_executor_utils.py        # build_process / start_process
│   │   │   ├── file_runner_process.py           # Plugin run configs (any language)
│   │   │   ├── queue_pump.py                    # Shared pipe reader + QTimer drain
│   │   │   ├── api_testka/ auto_control/ web_runner/
│   │   │   ├── load_density/ file_automation/ mail_thunder/
│   │   │   ├── test_pioneer/ prthinker/
│   │   ├── mail_thunder_extend/       # Post-test email report hook
│   │   └── prthinker_extend/          # prthinker settings & argument assembly
│   ├── extend_multi_language/         # Built-in i18n (English, Traditional Chinese)
│   ├── pybreeze_ui/
│   │   ├── editor_main/               # Main window + file tree context menu
│   │   ├── menu/                      # Automation / install / tools / plugin menus
│   │   ├── tools_gui/                 # cURL, HAR, JWT, diff, regex, … tool tabs
│   │   ├── diagram_editor/            # WYSIWYG diagram editor
│   │   ├── extend_ai_gui/             # CoT review, prompt editors, skill send
│   │   ├── connect_gui/               # SSH terminal + SFTP tree, AI review client
│   │   ├── jupyter_lab_gui/           # JupyterLab tab
│   │   ├── show_code_window/          # CodeWindow (run output)
│   │   ├── dialog/                    # prthinker settings dialog
│   │   └── syntax/                    # Automation keyword definitions
│   └── utils/                         # curl/HAR parsing, headers, JWT, hashing,
│                                      # URL validation, logging, exceptions, …
├── exe/                               # Standalone launcher & build configs
├── docs/                              # Sphinx documentation source; updates/ is the change log
├── test/                              # Unit tests (test_utils) + startup tests
├── images/                            # Screenshots
├── architecture.md                    # Architecture overview: layers, flows, cross-project contracts
├── architecture_explore.md            # Module-by-module architecture notes
├── progress.md                        # Work still to do
├── PLUGIN_GUIDE.md                    # Plugin development documentation
├── pyproject.toml                     # Package configuration (stable)
├── dev.toml                           # Package configuration (dev channel)
└── requirements.txt                   # Runtime dependencies

Dependencies

Runtime

Package Purpose
PySide6 (6.11.2) GUI framework (Qt for Python)
je-editor Base code editor engine
je_api_testka API testing automation
je_auto_control GUI/desktop automation
je_web_runner Web browser automation
je_load_density Load and stress testing
je-mail-thunder Email automation
automation-file File operation automation
test_pioneer YAML-based test framework
paramiko SSH client support
jupyterlab Integrated notebook environment

Development

build, twine, sphinx, sphinx-rtd-theme, auto-py-to-exe, pytest, pytest-cov, hypothesis, ruff

Testing & CI

python -m pip install -r dev_requirements.txt
python -m pytest test/test_utils/ -v --tb=short

Target Audience

License

MIT — see LICENSE. Copyright (c) 2022 JE-Chen

Screenshots are rendered from the actual PyBreeze widgets on Windows 11 with the default dark_amber theme; the sample data in each tool is real input processed by the real code path.
